Evaluation of tumor-infiltrating lymphocytes and molecular alterations in advanced colorectal carcinoma: a retrospective study in Southern Brazil
Surgical and Experimental Pathology volume 8, Article number: 9 (2025)
Abstract
Background
Colorectal carcinoma (CRC) is a leading cause of cancer-related deaths globally, ranking second in mortality rates. Cancer progression is influenced not only by genetic mutations in tumour cells but also by the surrounding tumour microenvironment, which can promote tumour growth or dampen the host’s immune response. Microsatellite instability tumours often exhibit a high presence of tumour-infiltrating lymphocytes (TILs), including cytotoxic T cells. TILs are increasingly recognised as important biomarkers across various cancer types, and the mismatch repair (MMR) status is particularly relevant in determining patient eligibility for immunotherapy, especially with immune checkpoint inhibitors in advanced disease. In the present study, we evaluated the presence and intensity of lymphocytic infiltrate in patients with advanced CRC at a tertiary hospital in southern Brazil.
Methods
A cross-sectional retrospective study was conducted to analyse the presence and intensity of TILs and their association with clinical data, as well as alterations in KRAS, NRAS, BRAF, NTRK, and MMR.
Results
Analysis of the presence and intensity of TILs in 241 tumours revealed that 70 (29.1%) were TIL + and 171 (70.9%) were TIL−. Only one tumour was NTRK+; this tumour was in a female patient, located in the right colon, TIL−, and deficient in MLH1/PMS2. There were no significant differences in the associations between the presence and intensity of the infiltrate and the clinical characteristics and molecular alterations studied.
Conclusions
The data from our study differed from those reported in the literature in that we found no association between a higher frequency and intensity of TILs and MMR deficiency. Associations with the molecular profiles of the KRAS, NRAS, and BRAF genes also showed no statistically significant differences.
Introduction
Colorectal carcinoma (CRC) is one of the most commonly diagnosed cancers worldwide, ranking second in cancer mortality [1]. Cancer progression is influenced not only by genetic alterations within tumour cells but also by the surrounding environment, which can provide factors that either promote cancer growth or reduce the host’s immune surveillance [2]. The microsatellite instability (MSI) pathway is recognised as a carcinogenic pathway in CRC and is found in 15% of sporadic colorectal tumours [3, 4]. MSI is a phenotype caused by mutations or epigenetic silencing of the mismatch repair (MMR) system genes. Because the MMR system’s repair proteins correct errors during DNA replication, MSI tumours with MMR deficiency (dMMR) exhibit a high mutational tumour burden and a high number of neoantigens, which are recognised by the immune system [5]. These tumours are generally characterised by an increased number of tumour-infiltrating lymphocytes (TILs), including cytotoxic T cells [6,7,8]. By contrast, MMR-proficient colorectal tumour cells have low immunogenicity and are infiltrated by a limited number of immune cells, making it difficult to elicit an adequate immune response [9]. Therefore, immune checkpoint blockade (ICB) therapy is ineffective in such patients. To enhance the sensitivity of immunotherapy, combination treatments are needed to boost tumour immunogenicity. The presence of TILs is increasingly recognised as an important biomarker in multiple cancer types [10], and the MMR status is gaining attention as a biomarker for determining patients’ eligibility for immunotherapy with immune checkpoint inhibitors, especially for those with advanced disease [7]. Generalised TIL density is a strong prognostic marker for survival in patients with colorectal cancer [10]. ICB therapy works by inhibiting interactions between molecules such as cytotoxic T-lymphocyte associated protein 4 and programmed death-1 (PD-1), which normally suppress T cell activation and function [2]. Tumours with a high mutational load and therefore increased immune infiltration respond favourably to ICB [11]. ICB has provided certain patients with long-lasting benefits and a significantly improved disease prognosis. However, inhibition of PD-1 or programmed cell death-ligand 1 (PD-L1) therapy has shown limited effects in the treatment of colorectal cancer.In 2017, the first anti-PD-1 drug, pembrolizumab, was approved by the Food and Drug Administration as a second-line treatment for patients with metastatic CRC who have MSI-high (MSI-H) tumours. However, only a small proportion of patients have dMMR/MSI-H tumours (approximately 15% of patients with colorectal cancer and 4% of those with metastatic CRC), and some of these patients develop immune resistance. In this study of patients with advanced CRC at a tertiary hospital in southern Brazil, we evaluated the presence and intensity of intratumoural lymphocytic infiltrate (i.e., TILs) in relation to the mutational status of KRAS, NRAS, and BRAF. We also examined protein alterations detected by immunohistochemistry of the NTRK and MMR status and histopathological features of advanced CRC.
Methods
Study population and sample
This retrospective study utilised data from a series of patients with clinical stage III or IV CRC treated at the Hospital de Clínicas de Porto Alegre. Samples were obtained from the Surgical Pathology Service between 2018 and 2022, with patient consent for their use. Primary site tumour samples were collected from surgical specimens and biopsies, and 241 patients were included in this study. Clinical and pathological data were obtained through a review of original patient medical records. The study was approved by the Research Ethics Committee of the Hospital de Clínicas de Porto Alegre under CAAE number 56.230.122.200.005.327.
Evaluation of TILs
The evaluation and semi-quantification of TILs were performed with the same haematoxylin–eosin slides used in the histopathological diagnosis. Briefly, formalin-fixed, paraffin-embedded samples were cut on a microtome set at 3 μm, and haematoxylin–eosin staining was carried out using automated equipment (VENTANA HE 600 system; Ventana Medical Systems Inc., Tucson, AZ, USA). TIL evaluation in the surgical sections was conducted in two regions: the centre of the lesion and the margin. For biopsies, the tumour infiltrate at its specific location was considered for analysis. Microscopic evaluation was performed initially at 100x magnification, increasing to 400x, and the results were reported in four intensity levels: absent, weak (rare lymphocytes), moderate (focal infiltrate), and strong (diffuse infiltrate), according to Liu et al. [12]. After semi-quantification, the results were categorised as negative TILs (absent or weak lymphocyte infiltrate) or positive TILs (moderate or strong lymphocyte infiltrate).
V600E, KRAS, NRAS and MMR status
The patient tumour tissue specimens in this study were analysed for their molecular status, including the BRAF V600E mutation and KRAS and NRAS mutations (exons 2, 3, and 4), by next-generation sequencing. The MMR status was assessed by immunohistochemistry as previously described by Remonatto et al. [13].
Evaluation of NTRK expression
NTRK expression was analysed by immunohistochemistry using a Roche monoclonal anti-pan-TRK antibody, clone EPR17341, which recognises proteins resulting from the fusion of NTRK genes. This was performed on an automated BenchMark ULTRA Ventana® platform, using material from the primary tumour site. For the surgical specimen samples, tissue microarray (TMA) blocks were created based on the anatomical examination of each patient’s specimen. Each TMA block contained 60 tumour cylinders of 2 mm, with duplicate tumours for each patient. For the biopsy blocks, a TMA was not constructed, and a single slide was prepared for each patient. The results were reported as either positive or negative for NTRK.
Statistical analysis
Statistical analyses were conducted using SPSS for Windows, version 18 (IBM Corp., Armonk, NY, USA). To investigate the association of TILs with sex, age, tumour location, molecular status, MMR status, histological grading, and mucinous component, the χ2 test or Fisher’s exact test was performed. Results were considered statistically significant when P < 0.05.
Results
Clinicopathological characteristics of patients
The present study involved 241 patients (124 women and 117 men). The tumour was located in the right colon in 56 patients, the left colon in 115, and the rectum in 66. In four patients, the tumour location was not specified. The mean age at diagnosis was 59 years, with a median of 61 years (range: 18–84 years). Forty-one (17%) patients had tumours with a mucinous component, and 81.7% were moderately differentiated (Table 1).
Evaluation of TILs
When assessing the intensity of TILs, 54 (22.4%) samples showed no infiltrate, 117 (48.5%) showed a weak infiltrate, 62 (25.7%) showed a moderate infiltrate, and 8 (3.3%) showed a strong infiltrate (Figs. 1 and 2). In the stratification between TIL + and TIL−, 70 (29.1%) tumours were TIL + and 171 (70.9%) were TIL−
Relationship between TILs and clinicopathological characteristics
The evaluation of TILs and patient characteristics did not reveal a statistically significant difference in any of the variables analysed (Table 2). The primary site with the highest percentage of TIL + was the rectum, with 34.9%. Patients under the age of 30 years had 42.9% of TIL + tumours (3 of 7 tumours).
Relationship between TILs and molecular status
Of the 241 patients included in this study, 239 were tested for MMR and 235 for NTRK. The remaining patients did not have a viable sample. The results are presented in Table 3. When analysing TILs and the molecular status, no statistically significant differences were observed.

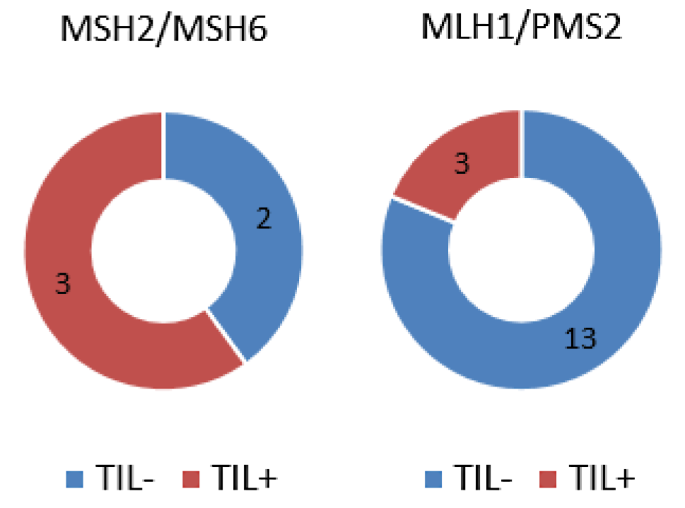

Regarding the association between TILs and MMR, most tumours deficient in MLH1/PMS2 were TIL−, while the majority of tumours deficient in MSH2/MSH6 were TIL+ (Fig. 3).
Discussion
This study evaluated the presence and intensity of TILs and associated the findings with clinicopathological characteristics and mutational profiles in patients with advanced CRC at a hospital in southern Brazil.
Specific features of the tumour microenvironment, including TILs, the Immunoscore, and PD-L1 expression, may predict responses to ICB [14].Research is increasingly highlighting the importance of tumour immune infiltration, which involves various immune cells such as T cells, B cells, natural killer cells, macrophages, dendritic cells, and neutrophils, and underscoring significant variability between patients [15, 16]. The first description in CRC of the prognostic value of tumour-infiltrating T cells, specifically the density and location of CD8 + cytotoxic T cells and Th1 cells, was reported by Galon et al. in 2006 [17]. Based on these findings, the concept of the Immunoscore as a more effective prognostic factor than pathological tumour progression (T-stage), tumour invasion (N-stage), tumour metastasis (M-stage), TNM staging, and the MSI status was proposed [18]. Colorectal cancer has long been considered immunogenic and challenging to treat with immunotherapy [15, 16]. However, advancements in the molecular characterisation of tumour-associated antigens and methods for detecting antigen-specific T-cell responses have shifted this perspective within the scientific community. The presence of TILs in tumours has been associated with improved clinical outcomes. In 2018, Mlecnik et al. demonstrated that in the metastatic context, response to treatment and prolonged survival were significantly associated with high immune infiltration [19].However, the type and function of TILs, as well as the localisation of different TILs within the tumour microenvironment, are crucial for determining whether tumour control or progression occurs [20]. In our study, when evaluating the frequency and intensity of TILs, we observed that of the 241 tumours tested, 70 showed moderate to strong infiltration, characterising TIL + samples according to Liu et al. [12].
Literature data associate the presence and intensity of TILs with a deficiency in the MMR system due to the increased expression of neoantigens resulting from uncorrected DNA replication errors [8, 15]. In our study, we found that patients with MSH2/MSH6 deficiency had more TIL + than TIL − tumours, unlike what was observed in tumours deficient in MLH1/PMS2. This finding could suggest that MSH2/MSH6 dMMR tumours may attract more TILs, although this association was not statistically significant. We also found no statistically significant association between TILs and MMR overall. This may have been due to the small number of dMMR patients evaluated, likely because only patients at an advanced clinical stage were included in the study [21].
When we analysed the association between TILs and KRAS mutations, we found that the proportion of TIL + was the same in mutated KRAS as in wild-type KRAS. This finding is consistent with the literature [22]. In the analysis of TILs and the NRAS gene, we observed that of the 9 patients with mutated NRAS, 4 had TIL + and 5 had TIL−. Because our previous study showed an association between dMMR and the BRAF V600E mutation, we expected some form of association with TILs as well. However, because we did not find any association between dMMR and TILs, the same result was observed when we analysed the BRAF gene.
With regard to the NTRK analysis, of the 235 patients analysed, only one was NTRK+ (0.42%). This is consistent with the very low prevalence of NTRK fusions in CRC (< 1%) [23, 24]. This sample belonged to a woman who was 66 years old at the time of her CRC diagnosis. The tumour was poorly differentiated, lacked a mucinous component, and was located in the right colon. It was dMMR (MLH1/PMS2), wild-type KRAS, wild-type NRAS, and wild-type BRAF, with a weak lymphocytic infiltrate (TIL−). This patient could be eligible for treatment with ICB drugs such as pembrolizumab and TRK inhibitors like entrectinib and larotrectinib [15, 25,26,27]. Literature data support the relationship between dMMR and NTRK fusions, consistent with our findings [28, 29].
The main limitations of this study are the low number of dMMR patients analysed and the lack of data on clinical treatment, prognosis, and patient survival. A methodological limitation was the absence of immunohistochemical characterisation of the lymphocytes that make up the infiltrate.
Although our findings did not reveal a statistical association between the variables analysed, the study has some strengths. These include the ability to associate TIL-related findings with the molecular status of KRAS, NRAS, and BRAF, as well as the immunohistochemical characterisation of MMR and NTRK.
Conclusions
This study analysed the frequency and intensity of TILs and investigated associations between these data and the molecular and immunohistochemical profile of advanced CRC. Our findings differed from those reported in the literature in that we found no association between a higher frequency and intensity of TILs and MMR deficiency, which may be attributed to the small number of dMMR patients in our cohort. Similarly, the associations with the molecular profiles of the KRAS, NRAS, and BRAF genes in this study also showed no statistically significant differences. Based on the data obtained from our study population of patients with advanced CRC, it was not possible to associate the presence of TILs with tumour molecular characteristics.
Data availability
The authors chose not to share the data of the patients included in the study because of the General Data Protection Law (Law No. 13.709/2018) in force in Brazil. The patients consented to the use of their biological samples and associated data only for the purposes of this research.
References
Bray F, Laversanne M, Sung H, Ferlay J, Siegel RL, Soerjomataram I et al. Global cancer statistics 2022: GLOBOCAN estimates of incidence and mortality worldwide for 36 cancers in 185 countries. CA Cancer J Clin [Internet]. 2024; https://doiorg.publicaciones.saludcastillayleon.es/10.3322/caac.21834
Binnewies M, Roberts EW, Kersten K, Chan V, Fearon DF, Merad M, et al. Understanding the tumor immune microenvironment (TIME) for effective therapy. Nat Med. 2018;24(5):541–50.
De’ Angelis GL, Bottarelli L, Azzoni C, De’ Angelis N, Leandro G, Di Mario F, et al. Microsatellite instability in colorectal cancer. Acta Biomed. 2018;89(9–S):97–101.
Koinuma K, Shitoh K, Miyakura Y, Furukawa T, Yamashita Y, Ota J, et al. Mutations of BRAF are associated with extensive hMLH1 promoter methylation in sporadic colorectal carcinomas. Int J Cancer. 2004;108(2):237–42.
Stadler ZK, Battaglin F, Middha S, Hechtman JF, Tran C, Cercek A, et al. Reliable Detection of Mismatch Repair Deficiency in Colorectal cancers using mutational load in next-generation sequencing panels. J Clin Oncol. 2016;34(18):2141–7.
Zhang P, Liu M, Cui Y, Zheng P, Liu Y. Microsatellite instability status differentially associates with intratumoral immune microenvironment in human cancers. Brief Bioinform [Internet]. 2021;22(3). https://doiorg.publicaciones.saludcastillayleon.es/10.1093/bib/bbaa180
Yamamoto H, Watanabe Y, Arai H, Umemoto K, Tateishi K, Sunakawa Y. Microsatellite instability: A 2024 update. Cancer Sci [Internet]. 2024; https://doiorg.publicaciones.saludcastillayleon.es/10.1111/cas.16160
Maby P, Tougeron D, Hamieh M, Mlecnik B, Kora H, Bindea G, et al. Correlation between density of CD8 + T-cell infiltrate in microsatellite unstable colorectal cancers and frameshift mutations: a rationale for personalized immunotherapy. Cancer Res. 2015;75(17):3446–55.
Marisa L, Svrcek M, Collura A, Becht E, Cervera P, Wanherdrick K et al. The Balance Between Cytotoxic T-cell Lymphocytes and Immune Checkpoint Expression in the Prognosis of Colon Tumors. J Natl Cancer Inst [Internet]. 2018;110(1). https://doiorg.publicaciones.saludcastillayleon.es/10.1093/jnci/djx136
Idos GE, Kwok J, Bonthala N, Kysh L, Gruber SB, Qu C. The prognostic implications of tumor infiltrating lymphocytes in colorectal cancer: a systematic review and meta-analysis. Sci Rep. 2020;10(1):3360.
Paijens ST, Vledder A, de Bruyn M, Nijman HW. Tumor-infiltrating lymphocytes in the immunotherapy era. Cell Mol Immunol. 2021;18(4):842–59.
Liu S, Kong P, Wang X, Yang L, Jiang C, He W, et al. Tumor microenvironment classification based on T-cell infiltration and PD-L1 in patients with mismatch repair-proficient and -deficient colorectal cancer. Oncol Lett. 2019;17(2):2335–43.
Remonatto G, Ferreira Salles Pilar E, de-Paris F, Schaefer PG, Kliemann LM. Integrated molecular profiling of RAS, BRAF mutations, and mismatch repair status in advanced colorectal carcinoma: insights from gender and tumor laterality. J Gastrointest Oncol. 2024;15(4):1580–91.
González-Montero J, Rojas CI, Burotto M. Predictors of response to immunotherapy in colorectal cancer. Oncologist [Internet]. 2024; https://pubmed.ncbi.nlm.nih.gov/38920285/
Bai Z, Zhou Y, Ye Z, Xiong J, Lan H, Wang F. Tumor-infiltrating lymphocytes in Colorectal Cancer: the fundamental indication and application on Immunotherapy. Front Immunol. 2021;12:808964.
Senovilla L, Vacchelli E, Galon J, Adjemian S, Eggermont A, Fridman WH, et al. Trial watch: prognostic and predictive value of the immune infiltrate in cancer. Oncoimmunology. 2012;1(8):1323–43.
Galon J, Costes A, Sanchez-Cabo F, Kirilovsky A, Mlecnik B, Lagorce-Pagès C, et al. Type, density, and location of immune cells within human colorectal tumors predict clinical outcome. Science. 2006;313(5795):1960–4.
Galon J, Bruni D. The role of the immune infiltrate in distinct cancer types and its clinical implications: lymphocytic infiltration in colorectal cancer. Cancer Treat Res. 2020;180:197–211.
Mlecnik B, Van den Eynde M, Bindea G, Church SE, Vasaturo A, Fredriksen T et al. Comprehensive intrametastatic immune quantification and major impact of Immunoscore on survival. J Natl Cancer Inst [Internet]. 2018;110(1). https://pubmed.ncbi.nlm.nih.gov/28922789/
Fridman WH, Pagès F, Sautès-Fridman C, Galon J. The immune contexture in human tumours: impact on clinical outcome. Nat Rev Cancer. 2012;12(4):298–306.
Weng J, Li S, Zhu Z, Liu Q, Zhang R, Yang Y, et al. Exploring immunotherapy in colorectal cancer. J Hematol Oncol. 2022;15(1):95.
Heriyanto DS, Yoshuantari N, Akbariani G, Lau V, Hanini H, Hidayati Z, et al. High probability of Lynch syndrome among colorectal cancer patients is associated with higher occurrence of KRAS and PIK3CA mutations. World J Oncol. 2024;15(4):612–24.
Okamura R, Boichard A, Kato S, Sicklick JK, Bazhenova L, Kurzrock R. Analysis of NTRK Alterations in Pan-Cancer Adult and Pediatric Malignancies: Implications for NTRK-Targeted Therapeutics. JCO Precis Oncol [Internet]. 2018;2018. https://doiorg.publicaciones.saludcastillayleon.es/10.1200/PO.18.00183
Yonemaru J, Hashimoto T, Takayanagi D, Naka T, Yatabe Y, Kanemitsu Y, et al. NTRK fusion-positive colorectal cancer in Japanese population. Pathol Int. 2021;71(5):355–9.
Hagopian G, Nagasaka M. Oncogenic fusions: Targeting NTRK. Crit Rev Oncol Hematol. 2024;194:104234.
Morris VK, Kennedy EB, Baxter NN, Benson AB 3rd, Cercek A, Cho M, et al. Treatment of metastatic colorectal Cancer: ASCO Guideline. J Clin Oncol. 2023;41(3):678–700.
Yoshino T, Pentheroudakis G, Mishima S, Overman MJ, Yeh KH, Baba E, et al. JSCO-ESMO-ASCO-JSMO-TOS: international expert consensus recommendations for tumour-agnostic treatments in patients with solid tumours with microsatellite instability or NTRK fusions. Ann Oncol. 2020;31(7):861–72.
Zhang Z, Pang J, Chen L, Chen J, Li J, Liu H, et al. Pan-tropomyosin receptor kinase immunohistochemistry is a feasible routine screening strategy for NTRK fusions in mismatch repair-deficient colorectal carcinomas. Hum Pathol. 2022;129:21–31.
Wang H, Li ZW, Ou Q, Wu X, Nagasaka M, Shao Y, et al. NTRK fusion positive colorectal cancer is a unique subset of CRC with high TMB and microsatellite instability. Cancer Med. 2022;11(13):2541–9.
